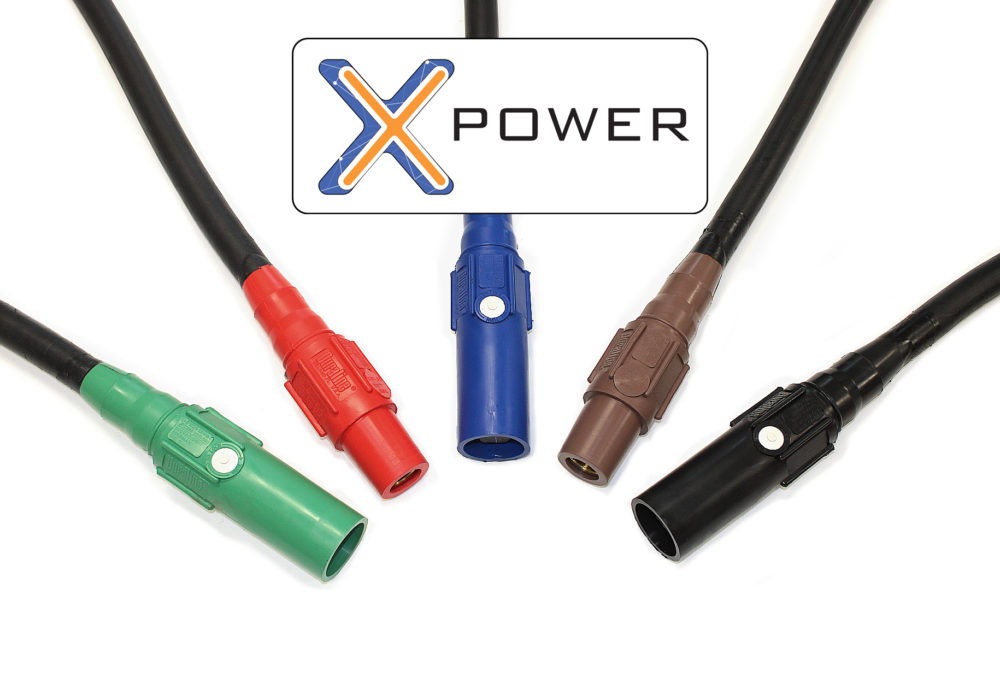

Duraline’s X-POWER Solid, Molded-to-Cable, Ship to Shore Cam-Lok / Cam Type Connectors differ from vulcanized insulating sleeves in that the insulating sleeve body is molded over the contact in one step, and the sleeve material is fused directly to the cable jacket during the molding process. This creates the strongest, longest-lasting connector that we make, which is free of seams and air pockets, and it includes an anti-sheer pin to prevent contact slip. Passes over 2000 lbs of pull force. X-Power connectors are available in E1022, E1023 and Long Shroud Series Positive-Latching styles. These Single-Pole, Cam Type Connectors are rated 690 amperes continuous, 1150 amperes intermittent, 600 Volts AC/DC and are Nema-4 Rated for Indoor/Outdoor Use. Single-Pole, In-Line, Latching Cam-Type Connectors. Customer to determine and provide appropriate cable size and length for their application for Duraline to quote.

These Ship to Shore Power Connectors are Molded to Cable available in E1022 22 Series and E1023 23 Series styles

Duraline Navy Shore Power Cam Lok Connectors are the Original Prefered Standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside for over 50 Years. Our latching connector series has been tested to meet Navy specs. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.

Some applications include entertainment, oil and gas, ship to shore power, ship building, mining operations, power distribution, construction sites, and other temporary power applications

These connectors are compatible with Leviton  22 Series , 23 Series Connectors and Eaton Cam lok E1022 , E1023

Made in the USA.

Ship-to-shore latching Cam Connectors by Duraline are UL/cUL Listed 1691 486A/B

V-O Flammability Rating

V-O Vertical Burn Burning stops within 10 seconds after two applications of ten seconds each of a flame to a test bar. NO flaming drips are allowed

Available Only Molded to Cable on DLO, SHOF, W, and Welding Cables. Contact Factory for other cables.

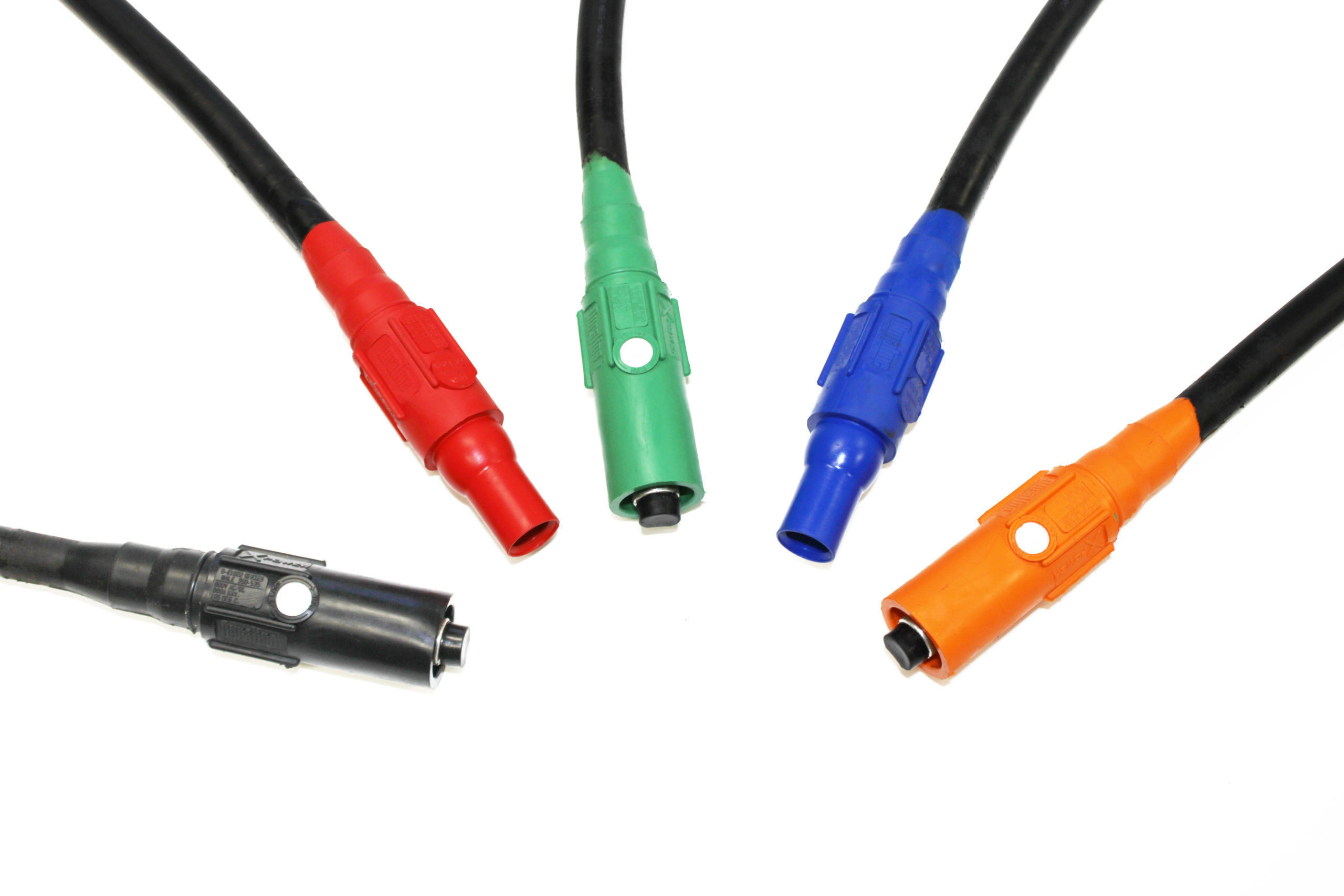

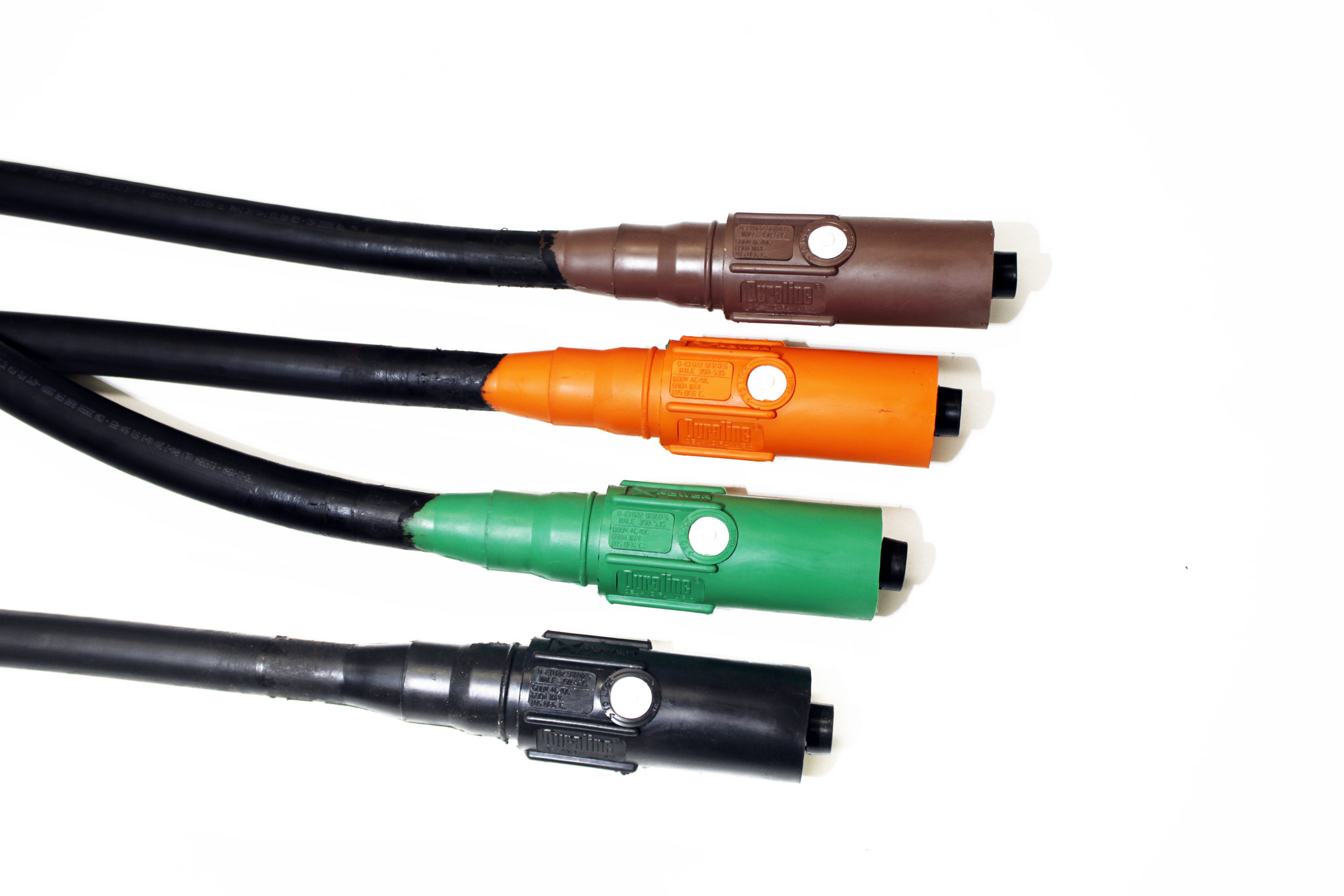

X Power E1022 Ball Nose Series Solid Molded to Cable Cam Type Extensions
Duraline’s X-POWER E1022 Ball Nose Series Solid, Molded-to-Cable Extensions, Cam-Lok / Cam Type Connectors differ from vulcanized insulating sleeves in that the insulating sleeve body is molded over the contact in one step, and the sleeve material is fused directly to the cable jacket...
X Power E1022 Ball Nose Series Solid Molded to Cable Cam Type Pigtails
Duraline’s X-POWER E1022 Ball Nose Series Solid, Molded-to-Cable Pigtails, Cam-Lok / Cam Type Connectors differ from vulcanized insulating sleeves in that the insulating sleeve body is molded over the contact in one step, and the sleeve material is fused directly to the cable jacket d...
X Power E1023 J Series Solid Molded to Cable Cam Type Extensions
Duraline’s X-POWER E1023 J Series  Solid, Molded-to-Cable Extensions, Cam-Lok / Cam Type Connectors differ from vulcanized insulating sleeves in that the insulating sleeve body is molded over the contact in one step, and the sleeve material is fused directly to the cable jacket during...
X Power E1023 J Series Solid Molded to Cable Cam Type Pigtails
Duraline’s X-POWER E1023 J Series Solid, Molded-to-Cable Pigtails, Cam-Lok / Cam Type Connectors differ from vulcanized insulating sleeves in that the insulating sleeve body is molded over the contact in one step, and the sleeve material is fused directly to the cable jacket during th...
