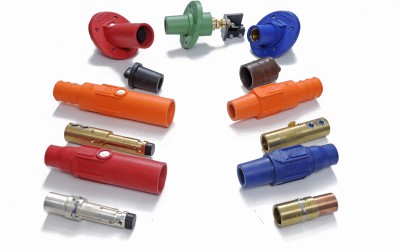

Duraline E1023 Shrouded Taper Nose “J” Series In Line Latching Cam Type Connectors, Single Conductor 250-750 MCM

Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC. Single Pole In Line Latching Cam Type Connectors.  NEMA 4 Rated for Indoor/Outdoor Use.

Available with Crimp tube and Double Set Screw Attachment.

Features a new Contact design that eliminates the possibility of contact rotation within the molded insulating sleeve. Ideally suited for a wide range of applications.

Section Includes Contacts, Sleeves, and Receptacles in Taper Nose Style Molded Insulating Hood / Sleeves Per OPNAV 11310.3B

Made in the USA

E1023 Series Cam Lok connectors achieve positive connections through a unique latching design. High locking pressures are developed, yet unlocking is quickly accomplished by depressing an insulated, external button. There are no external metal parts and no tools needed to connect or disconnect. These connectors feature a shrouded taper nose design insulating sleeve to allow a splash-tight seal between male and female contacts. Insulators are available in several colors for phase identification. Typical applications include motor connections, generators, power panels, and navy ship-to-shore systems

Duraline Shrouded Taper Nose “J” E1023 23 Series Navy Shore Power Cam Lok Connectors are the Original Preferred Standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside for over 50 Years. Our latching connector series has been tested to meet Navy specs. They provide heavy-duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.

Some applications include entertainment, oil and gas, ship-to-shore power, shipbuilding, mining operations, power distribution, construction sites, and other temporary power applications

These connectors are compatible with Leviton 23 Series Connectors and Eaton Cam Lok E1023

Ship-to-shore latching Cam Connectors by Duraline are UL/cUL Listed 1691  486A/B

V-O Flammability Rating

V-O Vertical Burn Burning stops within 10 seconds after two applications of ten seconds each of a flame to a test bar. NO flaming drips are allowed

E1023 23 Series Cam Type Male and Female Caps
Duraline E1023 23 Series Cam Type Male and Female Caps. Duraline E1023 J Series Single Pole Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These connector caps are the standard used by Naval bases and shipyar...
E1023 23 Series Male and Female J Style Shrouded Cam Type Connectors
Duraline E1023 Shrouded Taper Nose "J" Series Cam Lok Connectors, Single Conductor 250-750 MCM, Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC NEMA 4. Single Pole In-Line Latching Cam Type Connectors. Connectors achieve positive connections through a unique latching desig...
E1023 23 Series Male and Female J Style Shrouded Cam Type Receptacles
Duraline E1023 Male and Female Cam Type Receptacles, Single Conductor 250-750 MCM, Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC NEMA 4. Single Pole In Line Latching Cam Type Connectors. Single Conductor Male Receptacles 30° and 90° Section Includes Receptacles in J...
E1023 J Series Field Attachable Single Pole Male and Female Power Connectors Taper Nose
Duraline E1023 J Series Single Pole Field-Attachable Cam lok, Positive-Latching Connectors rated 690 Amps 600 Volts AC/DC NEMA 4. Taper nose Style Cam-Lok Connector and Insulating Sleeves Molded Rubber. Features new Contact design that eliminates the possibility of contact rotation within the mol...
