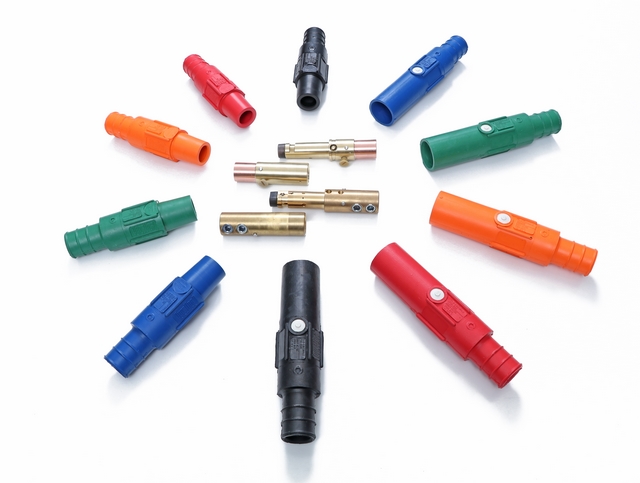

Duraline E1023 J Series Single Pole Power Connectors Taper Nose

Duraline E1023 J Series Single Pole Field-Attachable Cam lok, Positive-Latching Connectors rated 690 Amps 600 Volts AC/DC NEMA 4. Taper nose Style Cam-Lok Connector and Insulating Sleeves Molded Rubber. Features new Contact design that eliminates the possibility of contact rotation within the molded insulating sleeve. Ideally suited for a wide range of applications.

These Ship to Shore Power Connectors are typically vulcanized to cable but tape and shrink tube can be used. Duraline Ball Nose E1023 23 Series Navy Shore Power Cam Lok Connectors are the Original Preferred Standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside for over 50 Years. Our latching connector series has been tested to meet Navy specs. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.

Some applications for E1023 J Series Single Pole include entertainment, oil and gas, ship to shore power, ship building, mining operations, power distribution, construction sites, and other temporary power applications

These connectors are compatible with Leviton 23 Series Connectors and Eaton Cam Lok E1023

Made in the USA

Section Includes Contacts, Sleeves and Receptacles in Taper Nose Style Molded Insulating Hood / Sleeves Per OPNAV 11310.3B

E1023 23 Series Female Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - 350 MCM

Duraline Female Field Attachable E1023 23 J Taper Nose Series , 350 MCM Crimp Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to ...

E1023 23 Series Female Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - 500 MCM

Duraline Female Field Attachable E1023 23 J Taper Nose Series , 500 MCM Crimp Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to ...

E1023 23 Series Female Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - Double Set Screw

Duraline E1023 23 Series Female - 750 MCM Connectors. E1023 23 J Taper Nose Series , Double Set Screw Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are...

E1023 23 Series Male Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - 350 MCM

Duraline Male Field Attachable E1023 23 J Taper Nose Series Field Connectors 350 MCM, Crimp Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically ...

E1023 23 Series Male Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - 500 MCM

Duraline Male Field Attachable E1023 23 J Taper Nose Series, 500 MCM Crimp Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cab...

E1023 23 Series Male Cam Type Connector and Sleeve Molded Field Attachable Clamp / Vulcan - Double Set Screw

Duraline Male Field Attachable E1023 23 J Taper Nose Series, Double Set Screw Style Single Pole Latching Cam Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to ...
