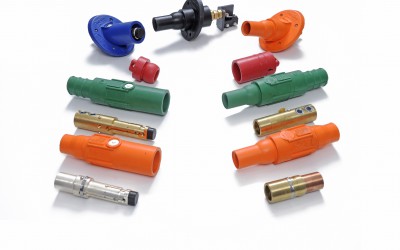

Click tp Download our NEW BrochureDuraline’s Standard E1022 22 Series Ball Nose Positive-Latching Single Pole Cam Lok Connector Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC. Nema 4 Rated for Indoor/Outdoor Use. Single Pole In Line Latching Cam Type Connectors.

Available with Crimp tube and Double Set Screw Attachment.

Features new Contact design that eliminates the possibility of contact rotation within the molded insulating sleeve. Ideally suited for a wide range of applications.

Click to download our NEW brochure.

Section Includes Contacts, Sleeves and Receptacles in Ball-Nose Style Molded Insulating Hood / Sleeves Per OPNAV 11310.3B

E1022 Series Cam Lok connectors achieve positive connections through a unique latching design. High locking pressures are developed, yet unlocking is quickly accomplished by depressing an insulated, external button. There are no external metal parts and no tools needed to connect or disconnect. These connectors feature a ball-nose design insulating sleeve to allow a splash-tight seal between male and female contacts. Insulators are available in several colors for phase identification. Typical applications include motor connections, generators, power panels and navy ship-to-shore systems

Duraline Ball Nose E1022 22 Series Navy Shore Power Cam-Lok Connectors are the Original Preferred Standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside for over 50 Years. Our latching connector series has been tested to meet Navy specs. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.

some applications include entertainment, oil and gas, ship to shore power, ship building, mining operations, tower-to-cell cable connections in wind turbines, power distribution, construction sites, and other temporary power applications

These connectors are compatible with Leviton 22 Series Connectors and Eaton Cam lok E1022

Made in the USA

Ship-to-shore latching Cam Connectors by Duraline are UL/cUL Listed 1691  486A/B

V-O Flammability Rating

V-O Vertical Burn Burning stops within 10 seconds after two applications of ten seconds each of a flame to a test bar. NO flaming drips are allowed
E1022 / 22 Series Male and Female Positive Latching Ball Nose Connectors
Duraline's standard E1022 Series Ball-Nose Positive Latching Cam Type Connector Single Conductor 250-750 MCM, Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC NEMA 4. Single Pole In-Line Latching Cam Type Connectors. These Ship to Shore Power Connectors are typically...
E1022 /22 Series Male and Female Positive Latching Ball Nose Cam Type Receptacles
Duraline's standard E1022 Series Ball-Nose Positive-Latching Cam Type Connector Single Conductor 250-750 MCM, Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC NEMA 4. Single Pole In Line Latching Cam Type Connectors. Ball-nose Receptacles 30° and 90° and 15° with MicroSwitc...
E1022 22 Series Male and Female Caps Cam Type
Duraline E1022 22 Series Positive-Latching Cam Type Molded Caps. Duraline E1022 Ball-Nose Series Single Pole Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These connectors are the standard used by Navy bases and ship...
E1022 Field Attachable Single Pole Male and Female Power Connectors Ball Nose
Duraline's Field-Attachable E1022 Series Single Pole Latching Cam-Type devices are rated up to 690 Amps 600 Volts AC/DC NEMA 4 providing heavy-duty, completely insulated connections that are vibration-resistant. These connectors are commonly used to provide power to ships at dock-side meeting U.S...
