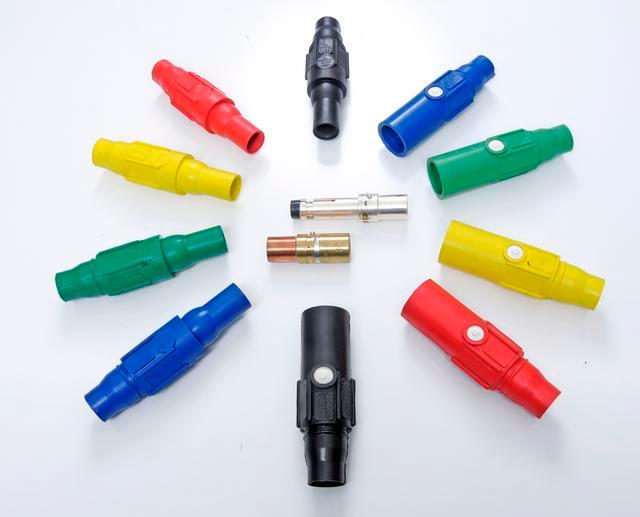

Duraline’s standard E1022 Series Ball-Nose Positive Latching Cam Type Connector Single Conductor 250-750 MCM, Rated 690 amperes continuous, 1150 amperes intermittent 600 Volts AC/DC NEMA 4. Single Pole In-Line Latching Cam Type Connectors.

These Ship to Shore Power Connectors are typically vulcanized to cable but tape and shrink tube can be used. Duraline Ball Nose E1022 22 Series Navy Shore Power Cam-Lok Connectors are the Original Preferred Standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside for over 50 Years. Our latching connector series has been tested to meet Navy specs. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.

Some applications include entertainment, oil and gas, ship to shore power, ship building, mining operations, power distribution, construction sites, and other temporary power applications

These connectors are compatible with Leviton  22 Series Connectors and Eaton Cam lok E1022

Made in the USA

Ship-to-shore latching Cam Connectors by Duraline are UL/cUL Listed 1691  486A/B

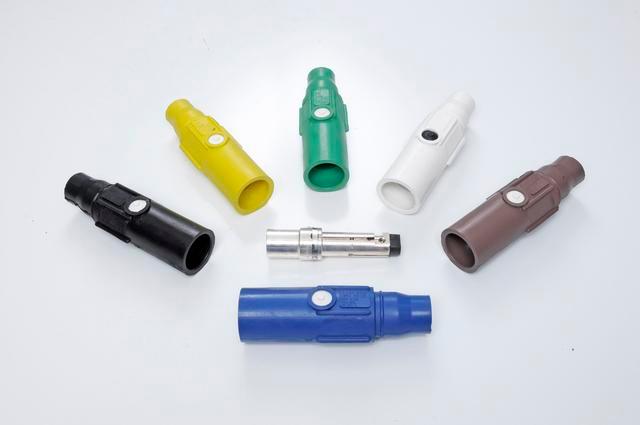

E1022 / 22 Series Female Ball Nose Cam Type Connectors 350 MCM
Duraline Female Ball Nose E1022 22 Series , 350 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and s...
E1022 / 22 Series Female Ball Nose Cam Type Connectors 500 MCM
Duraline Female Ball Nose E1022 22 Series , 500 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and s...
E1022 / 22 Series Female Ball Nose Cam Type Connectors 750 MCM
Duraline Female Ball Nose E1022 22 Series , 750 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and s...

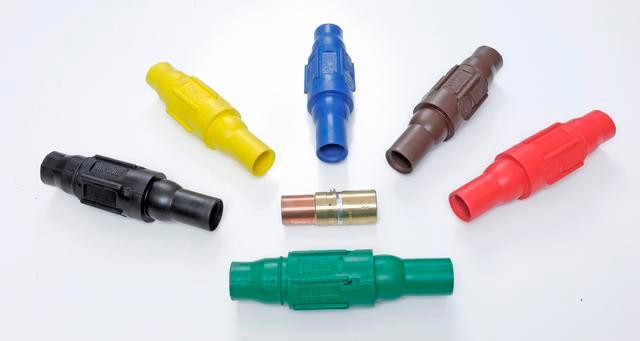

E1022 / 22 Series Male Ball Nose Cam Type Connectors 350 MCM
Duraline Male Ball Nose E1022 22 Series , 350 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and shr...
E1022 / 22 Series Male Ball Nose Cam Type Connectors 500 MCM
Duraline Male Ball Nose E1022 22 Series , 500 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and shr...
E1022 / 22 Series Male Ball Nose Cam Type Connectors 750 MCM
Duraline Male Ball Nose E1022 22 Series , 750 MCM Crimp Style Single Pole Latching Cam-Type devices are rated up to 690 Amps providing heavy-duty, completely insulated connections that are vibration-resistant. These Ship to Shore Power Connectors are typically vulcanized to cable but tape and shr...
